CALIBRATION LABORATORY

CALIBRATION LABORATORY

METALLOGRAPHIC LABORATORY AND MECHANICAL TESTING ROOM

PPS Group a.s. has its own accredited calibration and testing laboratory, which is accredited according to the international standard ISO/IEC 17025:2017. The calibration laboratory is capable of performing calibration of length, plane angle, temperature and pressure gauges. The test laboratory is capable of measuring geometric quantities, shape and position deviations on three-dimensional coordinate measuring machines (3D). We provide calibration and testing laboratory services not only within our own company but also for customers of other companies. In order to win customer satisfaction and trust and to improve the quality of the work of the calibration and testing laboratory, we constantly monitor and apply new knowledge gained at regular seminars and training courses.

CALIBRATION AND TESTING LABORATORY

Scope of accredited activities

  • end scales
  • roller gauges
  • calliper gauges
  • setting rings
  • threaded mandrels and rings
  • thread measuring wires
  • micrometric gauges
  • setting gauges
  • two- and three-touch bore micrometers
  • sliding gauges
  • passameters and micropassameters
  • dial deflection gauges and cavity gauges
  • micrometric punches
  • steel line rulers
  • steel measuring tapes and belts
  • thickness gauges with deflection gauges
  • leaf gauges
  • digital altimeters
  • protractors
  • knife rulers
  • inspection rulers
  • control boards
  • angle gauges
  • spirit levels and inclinometers
  • steel angles
  • strain gauges
  • glass thermometers and thermometers with sensor
  • TESTING LABORATORY:
    measurements on three-coordinate measuring machines - 3D

Non-accredited activity

  • prismatic pads
  • prismatic pads
  • construction spirit levels
  • measuring wedges

METALLOGRAPHIC LABORATORY

The metallographic laboratory of PPS Group a.s. carries out activities to improve the quality of products manufactured by the company by providing a comprehensive control of supplied materials through mechanical and metallographic tests.

The scope of the accredited activities is metallographic analysis of materials and welded joints.

MECHANICAL TESTING LABORATORY

Scope of accredited activities

  • tensile tests
  • hardness history
  • fracture tests
  • bending impact test at ambient temperature and also at reduced temperature
  • measurement of hardness HBW, HV, HRC, HRB

List of measuring instruments

Name of measuring instrumentTypeScale
Universal length gaugeULM 600-C0-600/100 mm
Universal length gaugeMahr 8280-1000 mm
Universal length gaugeSIP MUL 1000,0-1000
Universal length gaugeULM 1000,0-1000
AltimeterDigimar 817 CLM0-600
Altimeter for end gauge calibrationMahr 8260-125
AltimeterABBE 200S0-200/100 mm
AltimeterABBE P00-200/100 mm
Universal measuring microscopeUMM 200200×100 mm
Altimeter for calibrating anglesRectimar 830700
Three-coordinate measuring machineMORA 01510-3300
Three-coordinate measuring machineLeica AT901-MR0-40000 mm
Pressure gaugeM2200/SP,0,01-70 MPa
Optical dividing headP10-360°
Dividing deviceWTGM0-360°

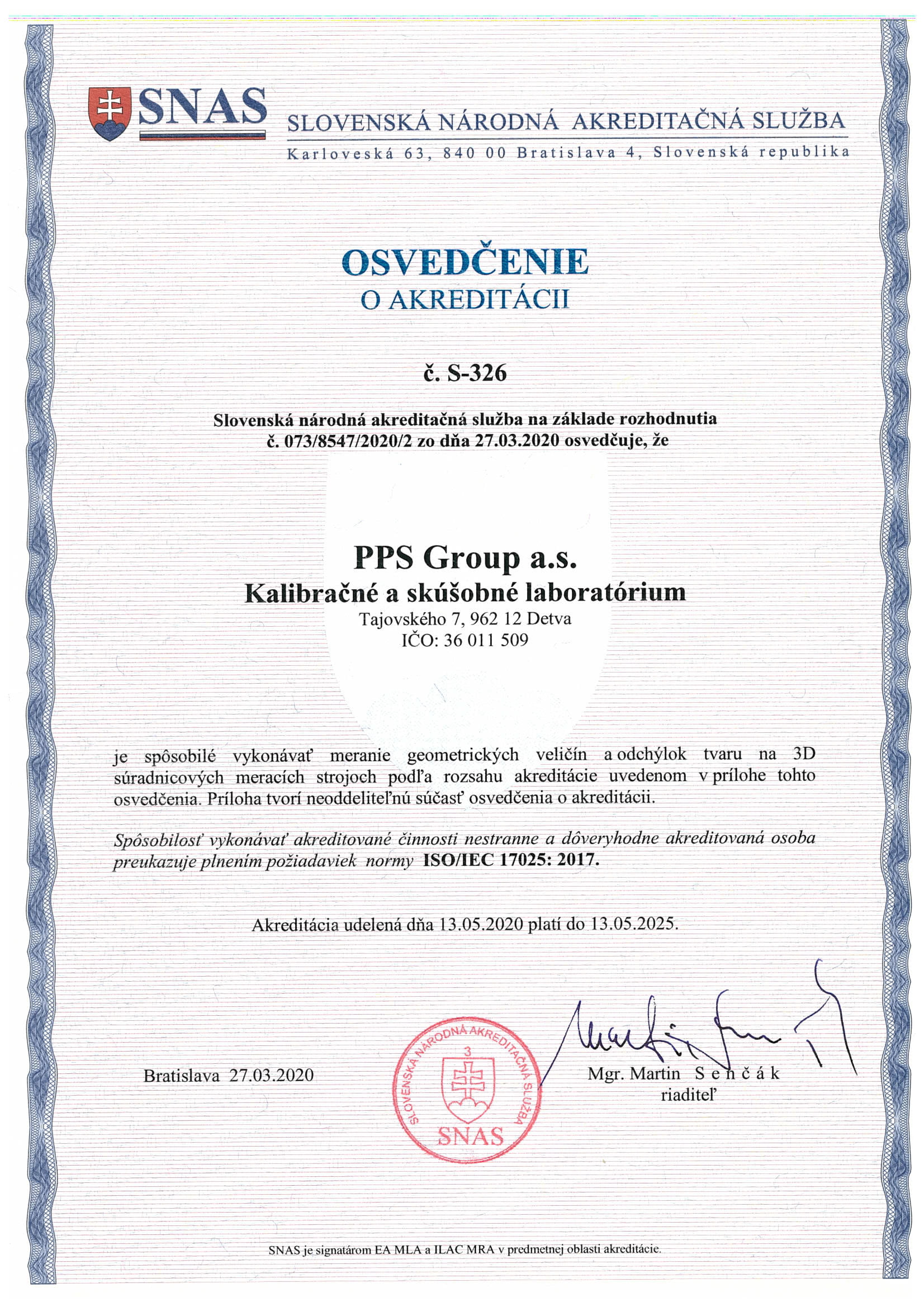

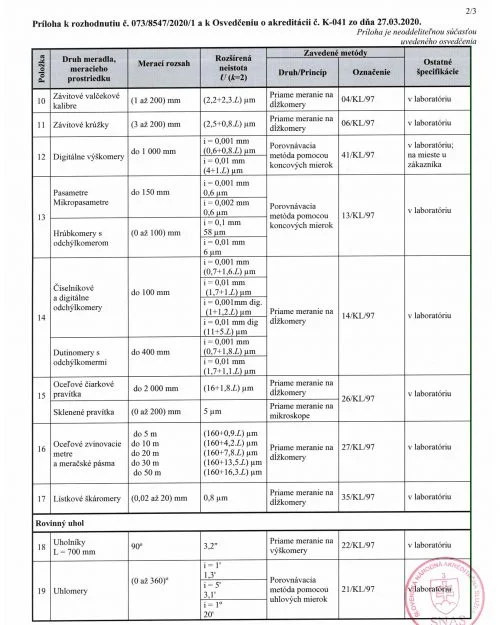

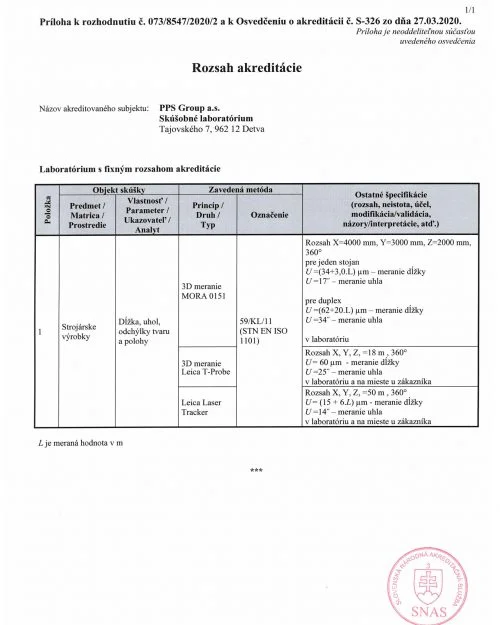

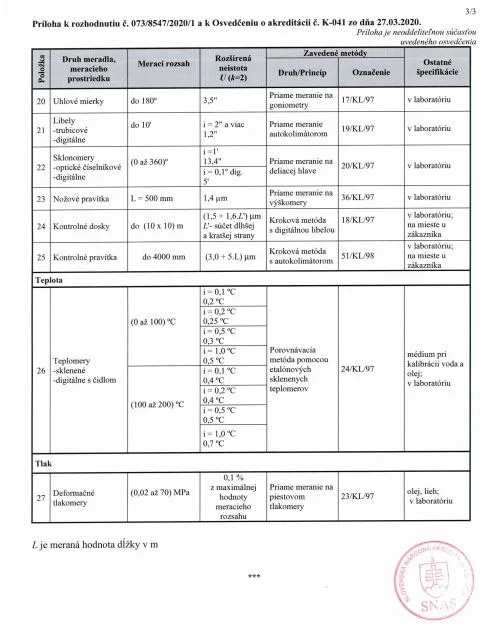

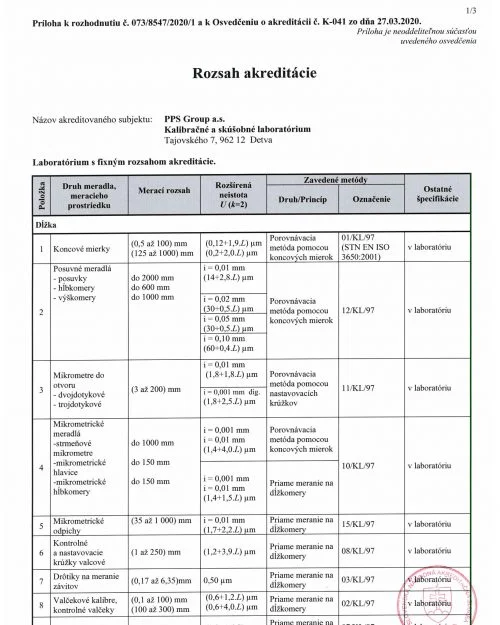

Certificates

PRICE LIST OF METROLOGICAL TASKS
